You can configure various settings for your door lock. All settings are easily managed through the app, while some core features can also be adjusted directly on the device.
Manage on the App

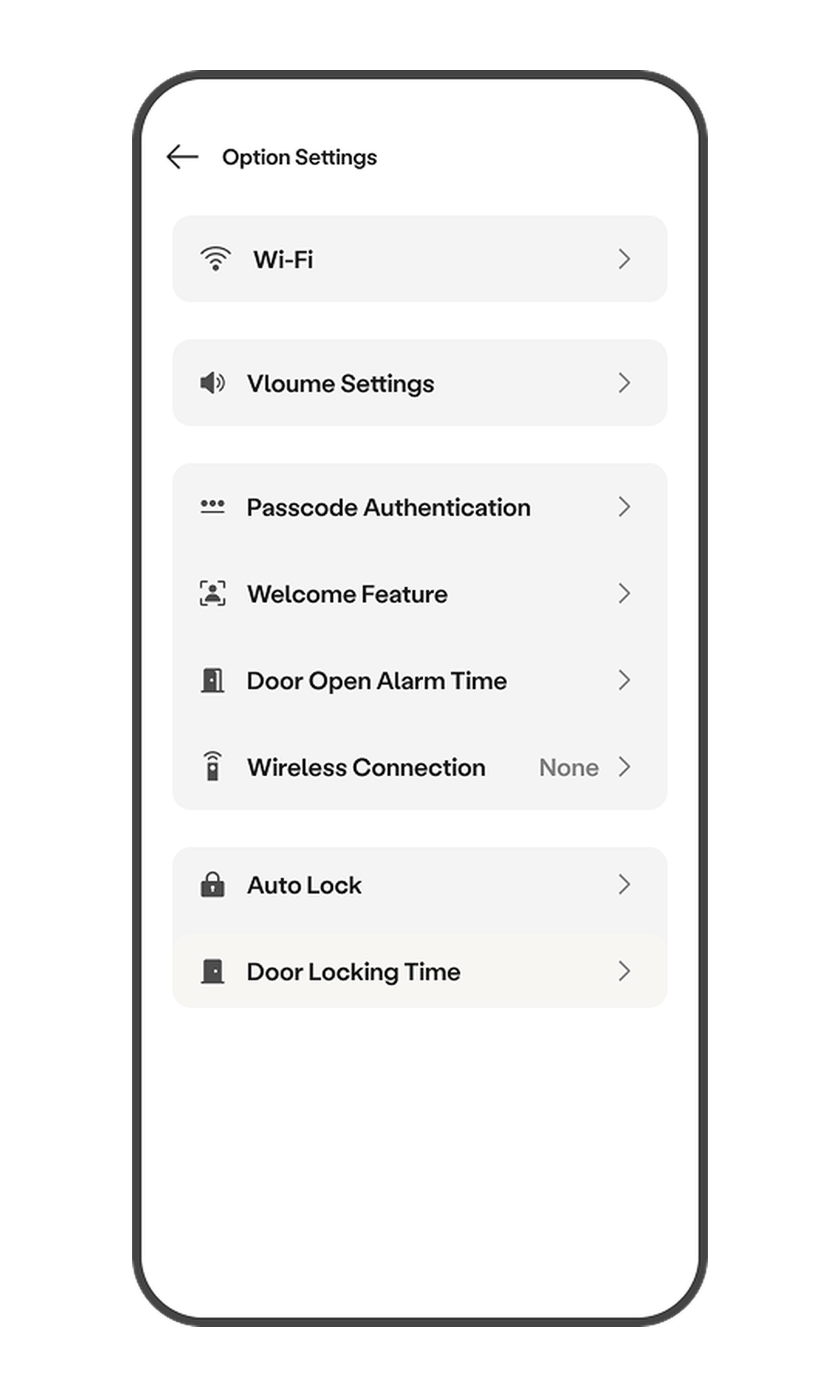

- Tap [Door Lock] on the app Home screen.
- Tap [More (⋮)] in the upper-right corner.
- Select [Option Settings].

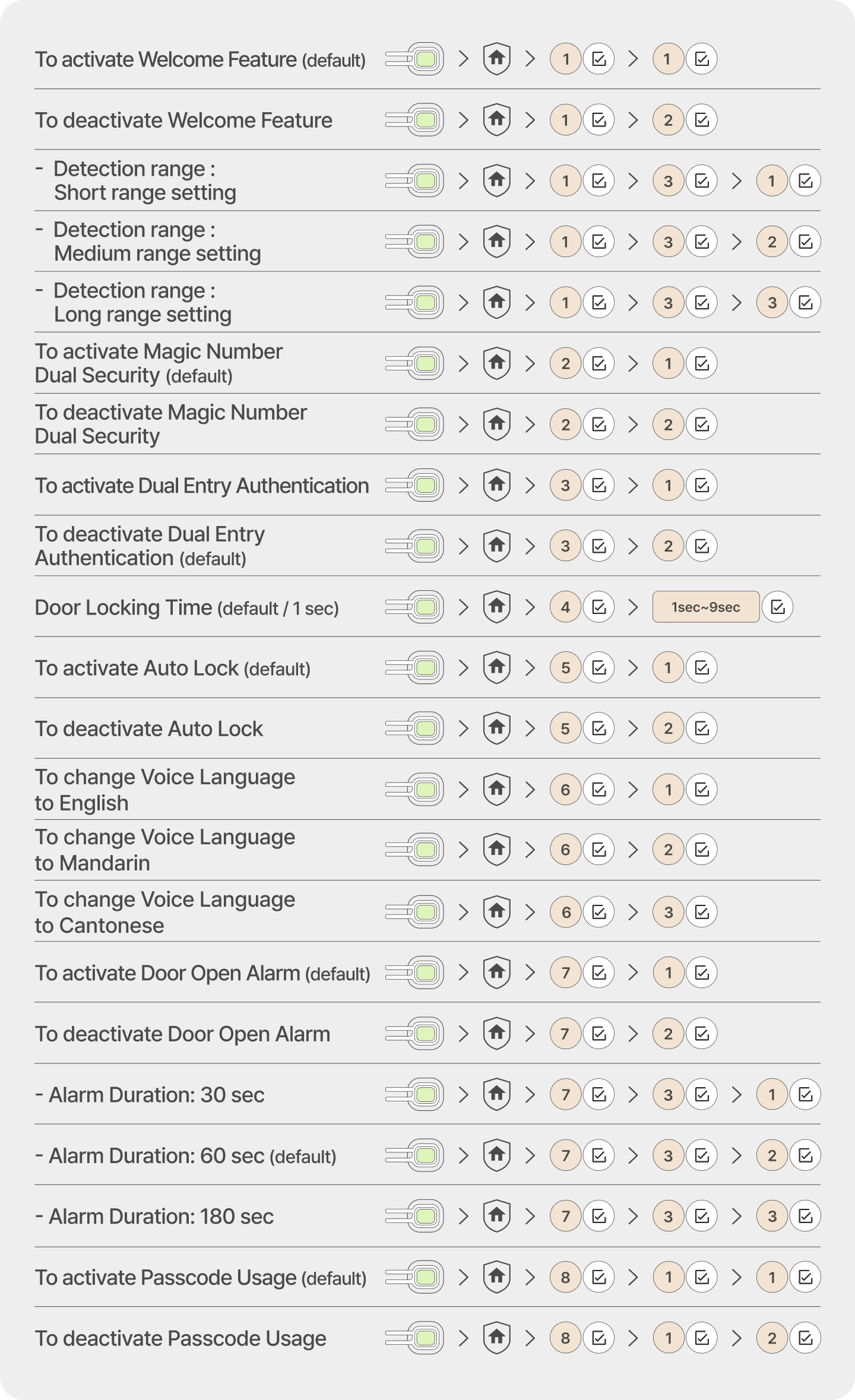

Manage Settings on the Device
- Press the button on the top of the indoor unit to open the battery cover.
- Press and hold the [Register] button on the indoor unit for at least 5 seconds until you hear the voice prompt.
- Press the
button on the outdoor unit's keypad to enter "Setup." - Follow the voice prompts to configure your desired features.
Wi-Fi Settings
This screen allows you to check the status of the Wi-Fi network connected to the door lock. You can check the name of the currently connected Wi-Fi, signal strength, and RSSI value, and guidance messages are displayed depending on the signal status.
Manage on the App

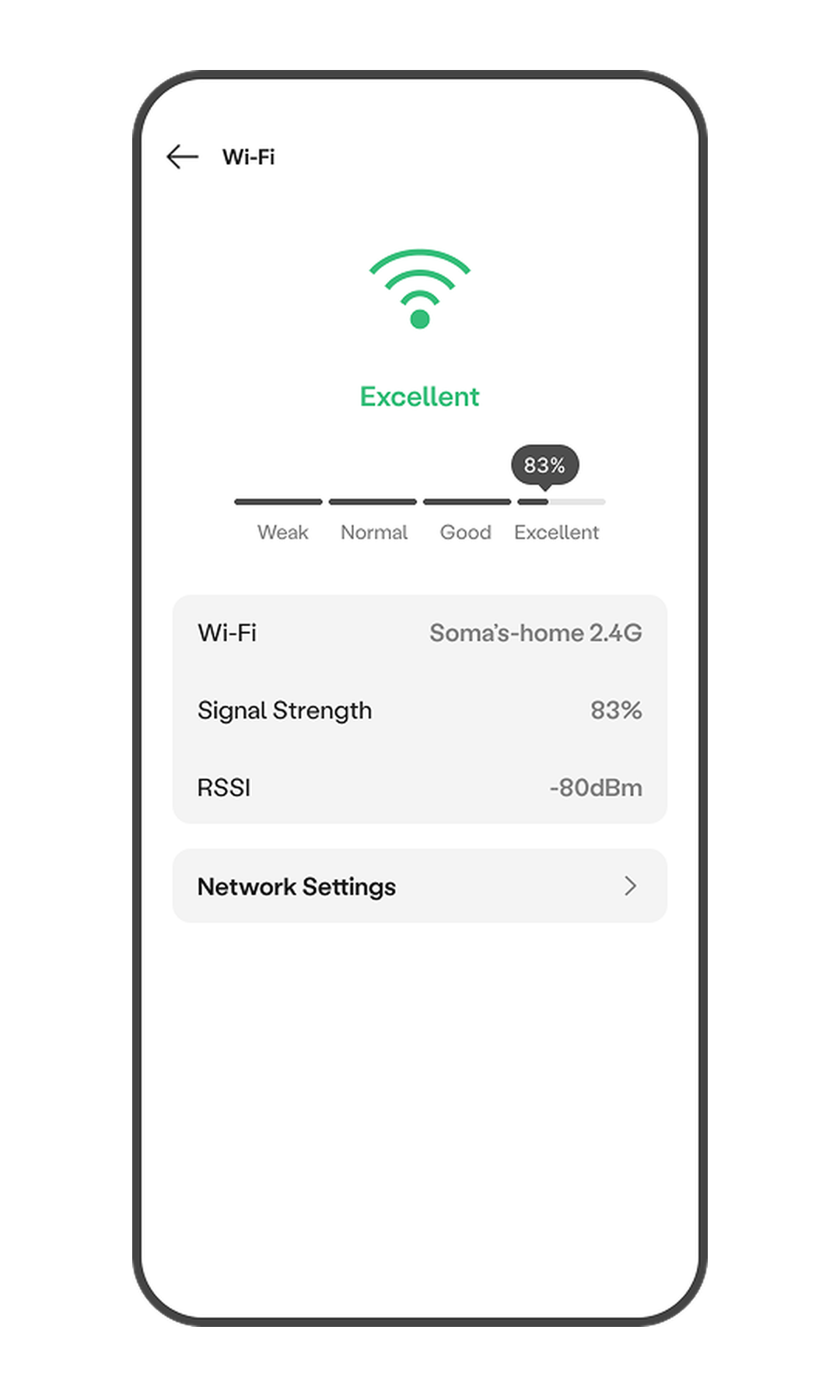

- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap Wi-Fi.
- You can check the currently connected Wi-Fi name, signal strength (%), and RSSI value.
- Tap [Change Network] to switch the door lock to a different Wi-Fi network.
Voice and Sound Effects Volume
This feature adjusts the volume of the voice guidance and sound effects from the door lock. There are 3 volume levels: Silent → Normal → Maximum. Even when set to Silent, emergency alarms and setup sounds will play at Normal volume.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.

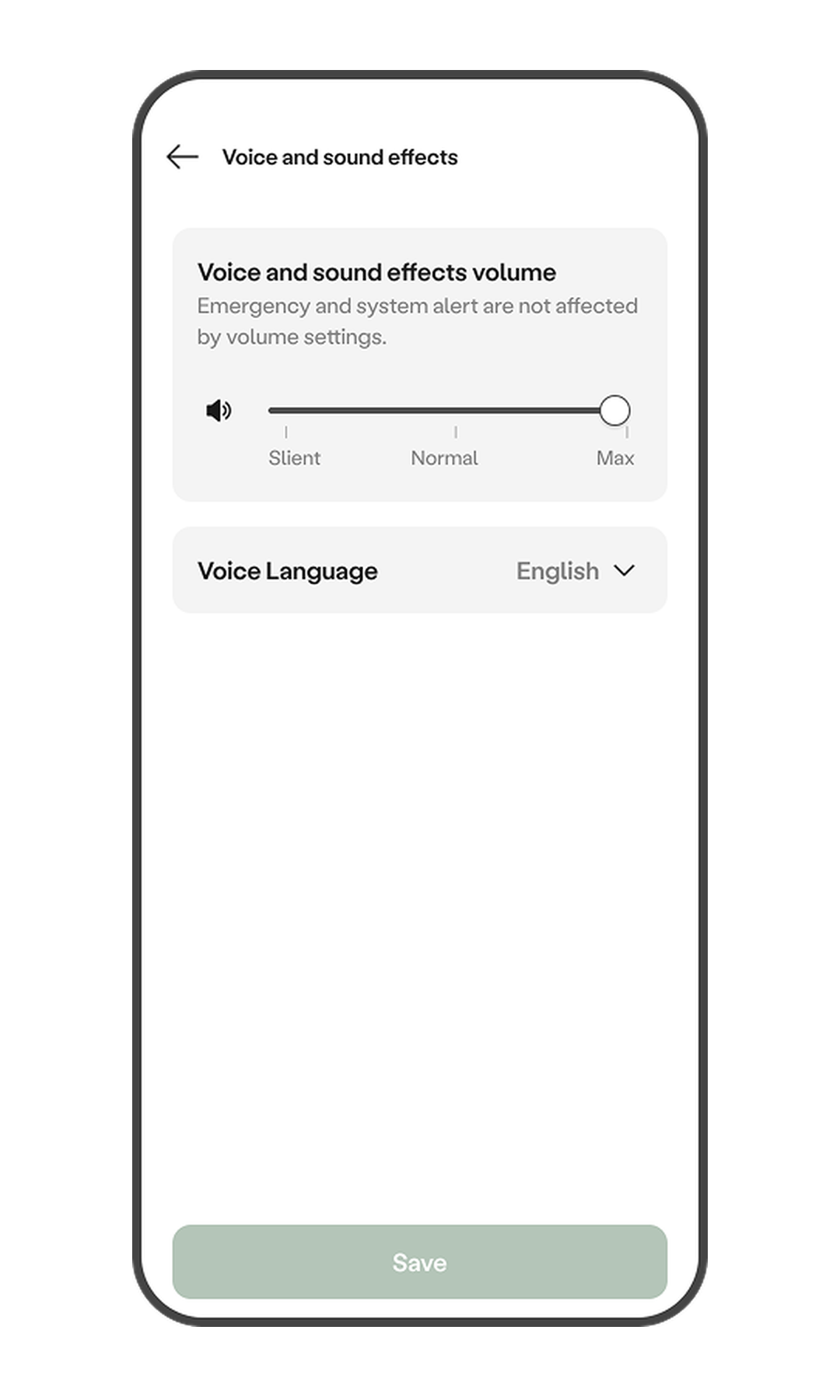

- Tap [Voice and sound effects].
- Adjust the slider to set the volume. You can choose from 3 levels: Silent, Normal, or Maximum. The default setting is Normal.

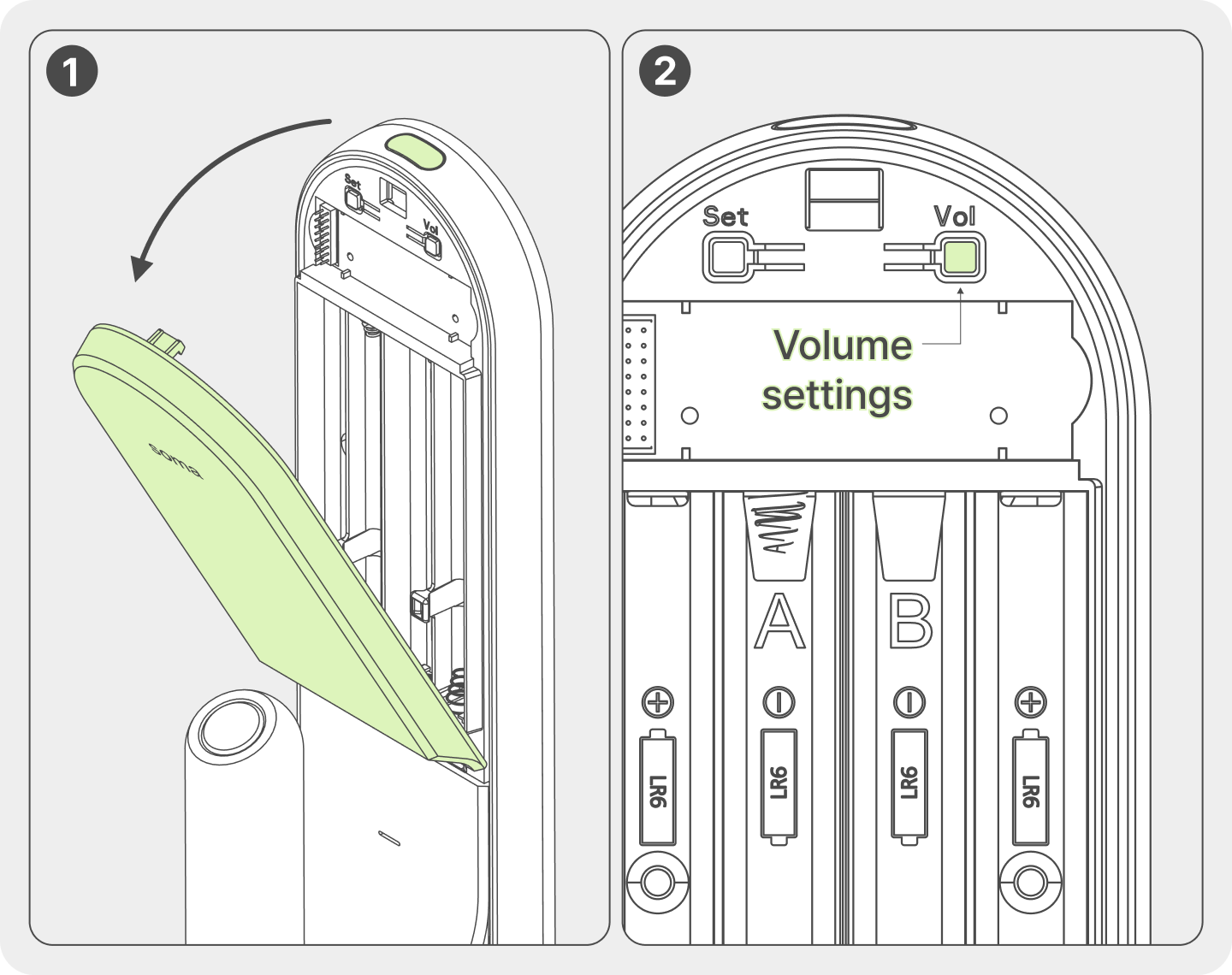

Manage on the Device
- Press the button on the top of the indoor unit to open the battery cover.
- Press the [Volume] button to move from the current volume level to the next (Silent → Normal → Maximum).
Voice Language
This feature allows you to change the language of the door lock's voice guidance.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Voice and sound effects].

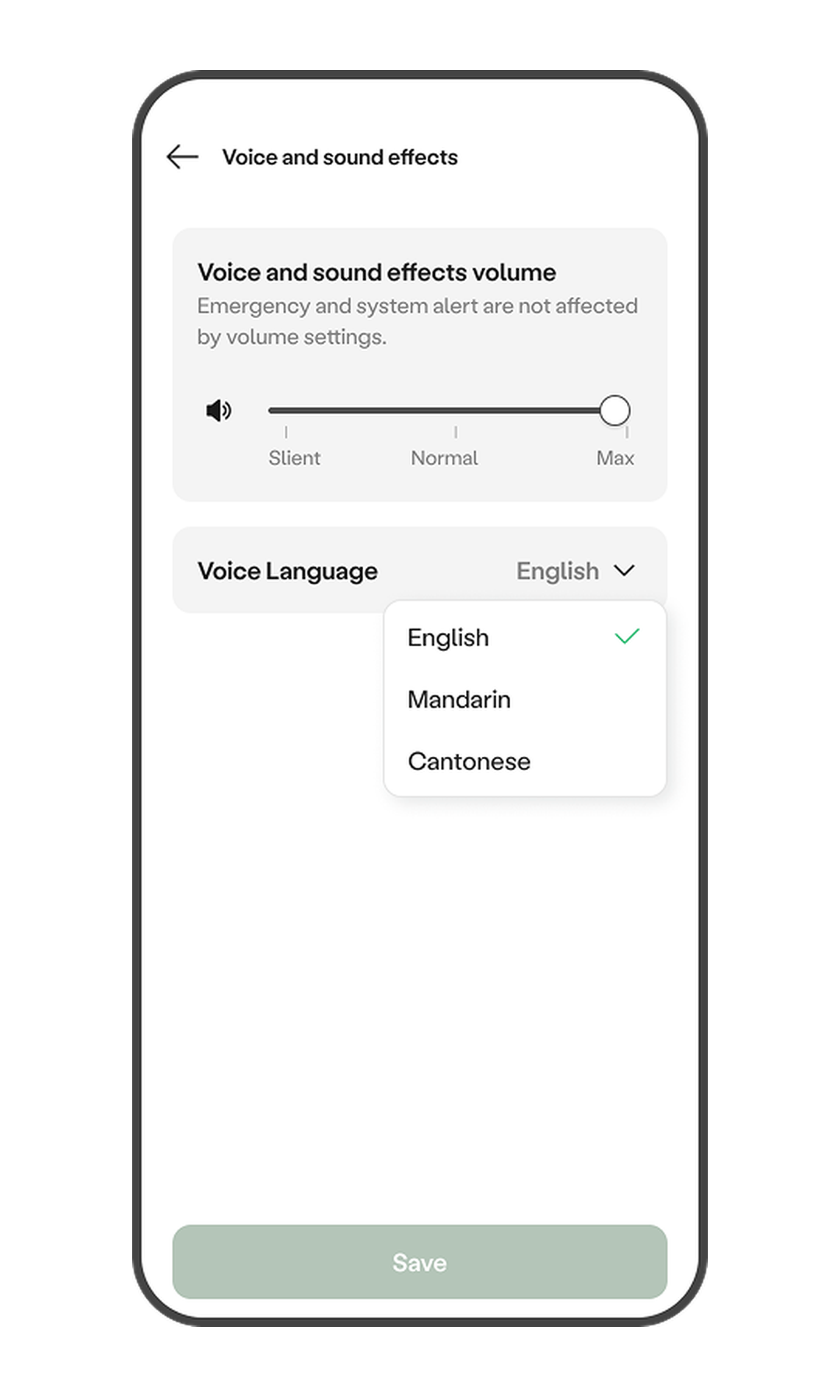

- Tap the voice language drop-down menu to select your desired language.
Manage on the Device
- Register (Hold 5 sec) > > 6 +
> Select language (1 English / 2 Mandarin / 3 Cantonese) +

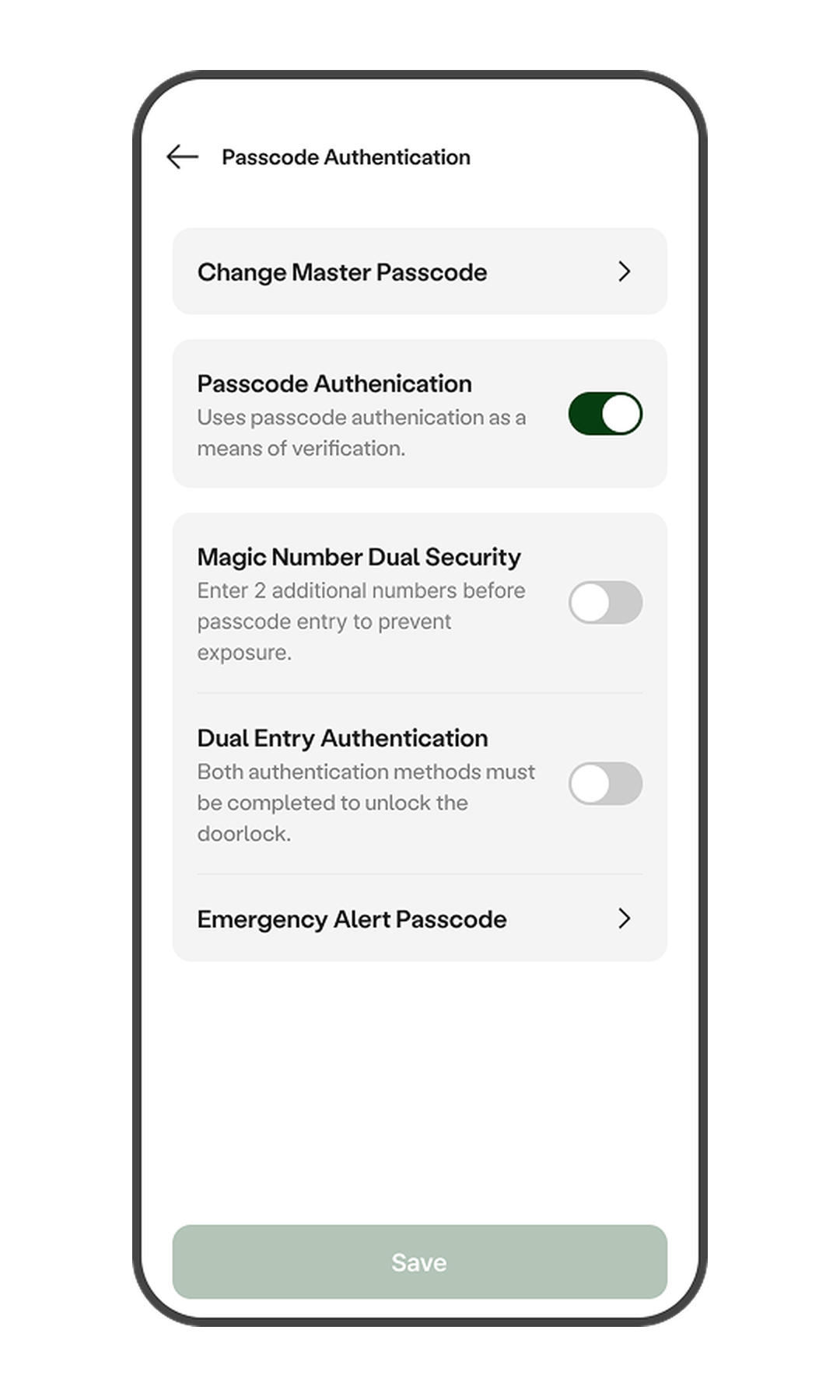

Passcode Authentication
This feature allows you to use passcode authentication as an authentication method. You can enter your passcode on the door lock keypad to gain access.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Passcode Authentication].
- Turn the toggle on or off to enable/disable the feature. The default setting is ON.
Manage on the Device
- To Enable (Default): Register (Hold 5 sec) > > 8 + > 1 + > 1 +
- To Disable: Register (Hold 5 sec) > > 8 + > 1 + > 2 +
Magic Number Dual Security
This mode prevents passcode exposure by requiring you to enter two random numbers before entering your passcode. The default setting is Magic Number Dual Security mode disabled.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.

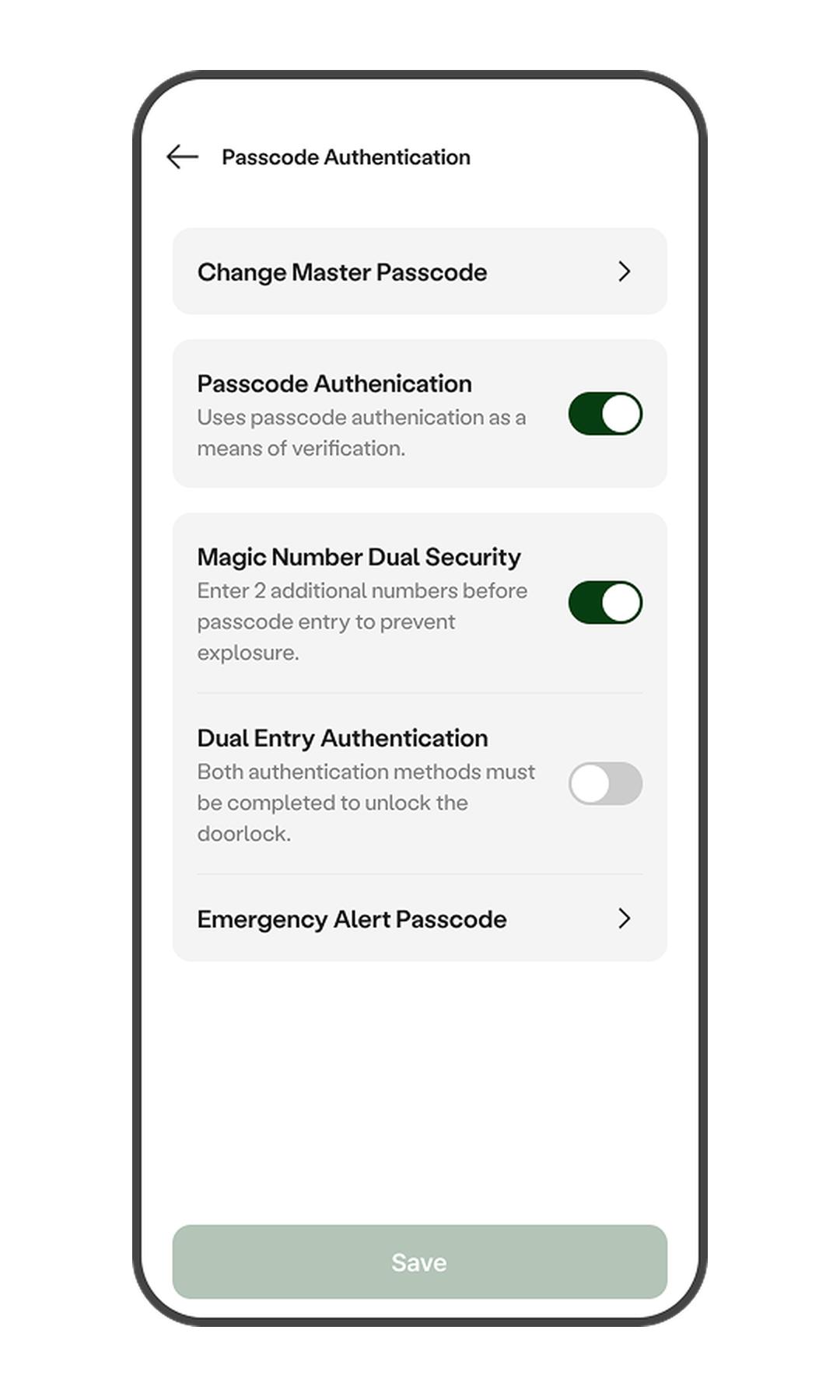

- Tap [Passcode Authentication].
- Turn on the [Passcode Authentication] toggle. If it is already on, you can skip this step.
- Turn on the [Magic Number Dual Security] toggle to enable the feature. The default setting is OFF.
Manage on the Device
- To Enable: Register (Hold 5 sec) > > 2 + > 1 +
- To Disable (Default): Register (Hold 5 sec) > > 2 + > 2 +
Dual Entry Authentication
This feature opens the door only when both a passcode and a fingerprint are successfully authenticated. It is recommended for those who want to further enhance security, such as ground-floor residents or residents of corridor-type apartments. To set Dual Entry Authentication mode, Passcode Authentication must be turned on and at least one fingerprint must be registered. The default setting is Dual Entry Authentication mode disabled. When Dual Entry Authentication is enabled, all master, user, and temporary passcodes require additional fingerprint authentication. In addition, while Dual Entry Authentication is active, you cannot enter using a fingerprint alone; you must enter your passcode first. The waiting time between the first and second authentication is 5 seconds.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.

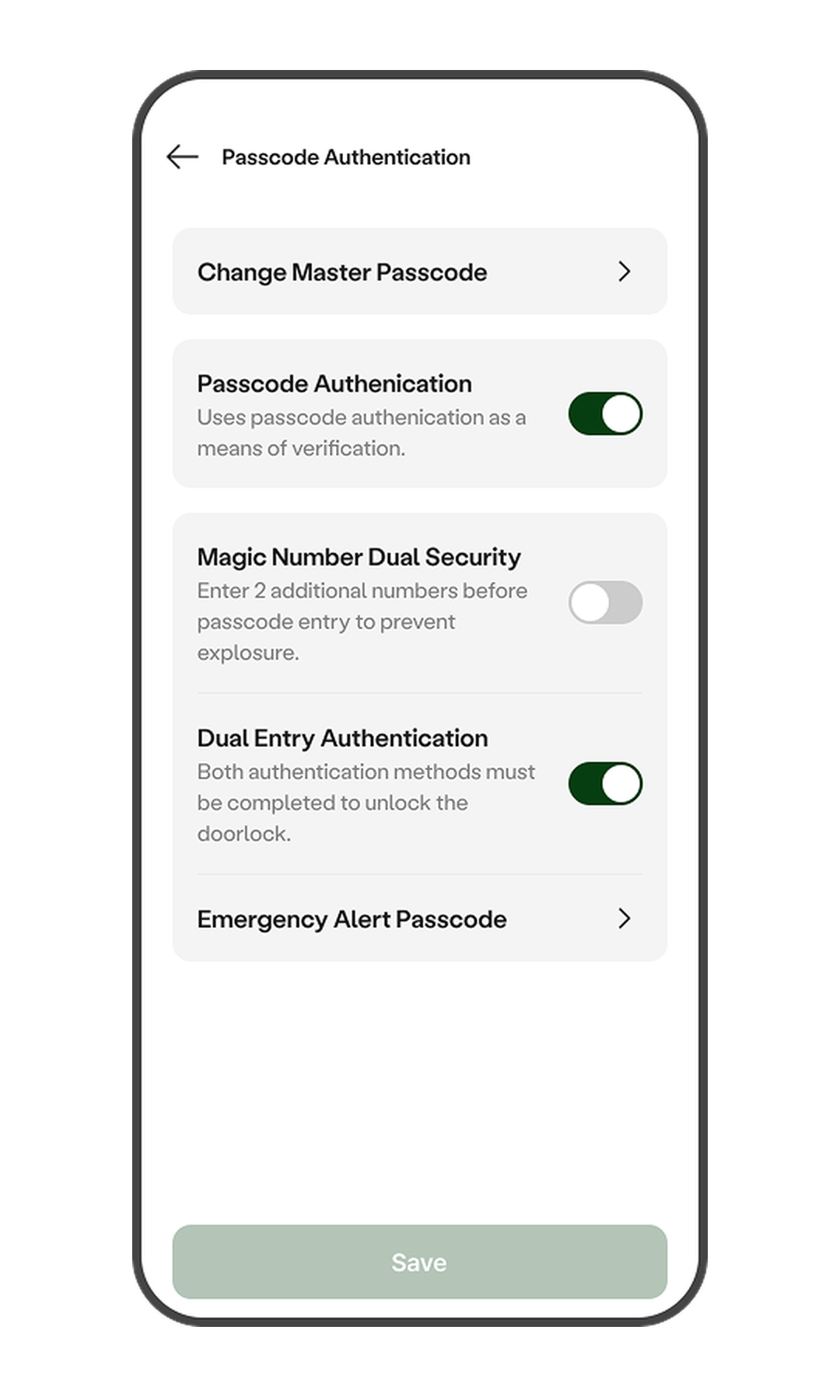

- Tap [Passcode Authentication].
- Turn on the [Passcode Authentication] toggle. If it is already on, you can skip this step.
- Toggle the [Dual Entry Authentication] switch to enable the feature. (Default: OFF)
Manage on the Device
- To Enable: Register (Hold 5 sec) > > 3 + > 1 +
- To Disable (Default): Register (Hold 5 sec) > > 3 + > 2 +
Emergency Alert Passcode
This passcode can be used in an emergency situation. Unlocking the door lock with the emergency alert passcode opens the door normally while simultaneously sending a push notification to members registered in the same Home. Only one emergency alert passcode can be registered.
- Passcodes identical to an already registered one will be flagged as duplicates and cannot be registered. (Applies to Master, User, Visitor, and Emergency Alert passcodes)
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Passcode Authentication].

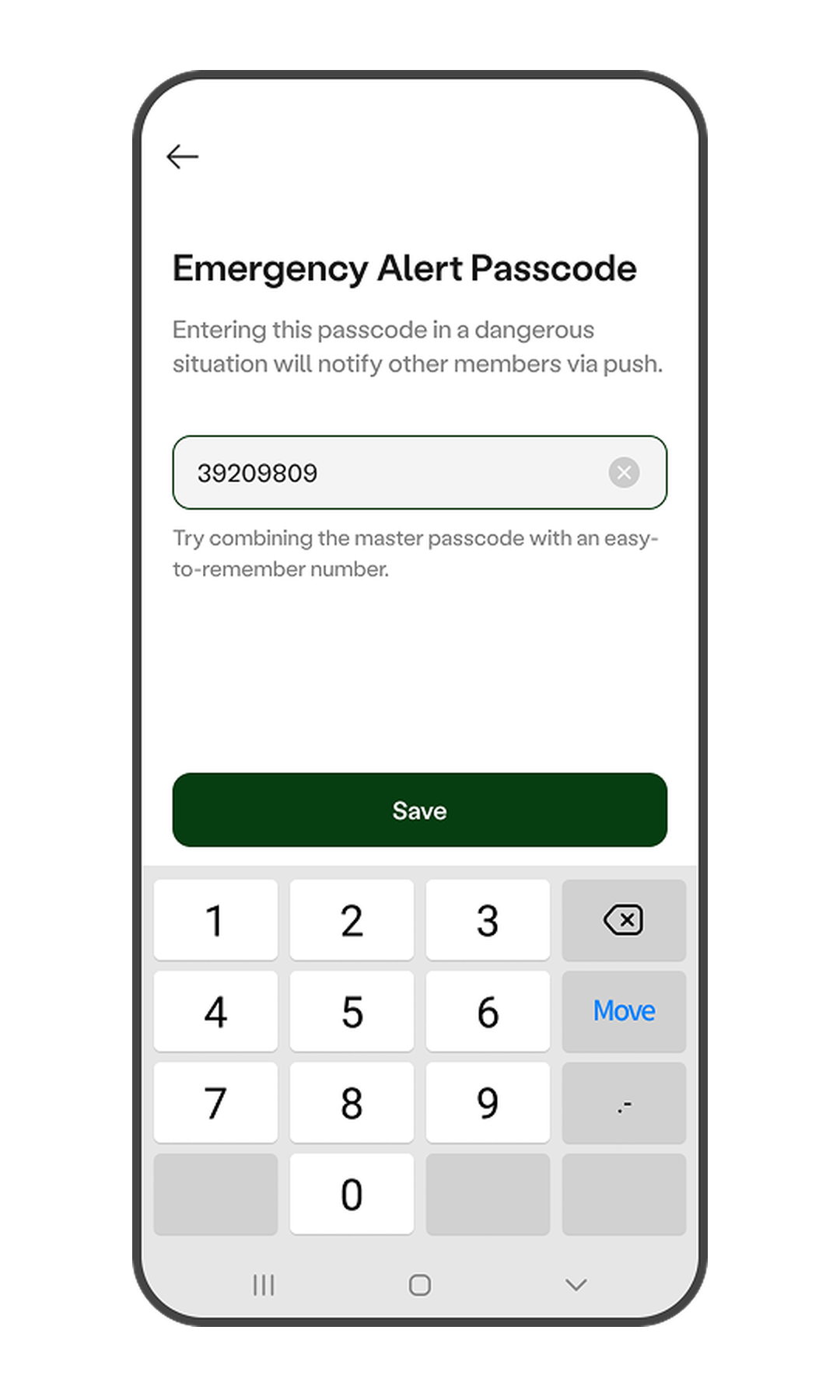

- Tap [Emergency Alert Passcode].
- Enter the emergency alert passcode you want to use and tap [Save].

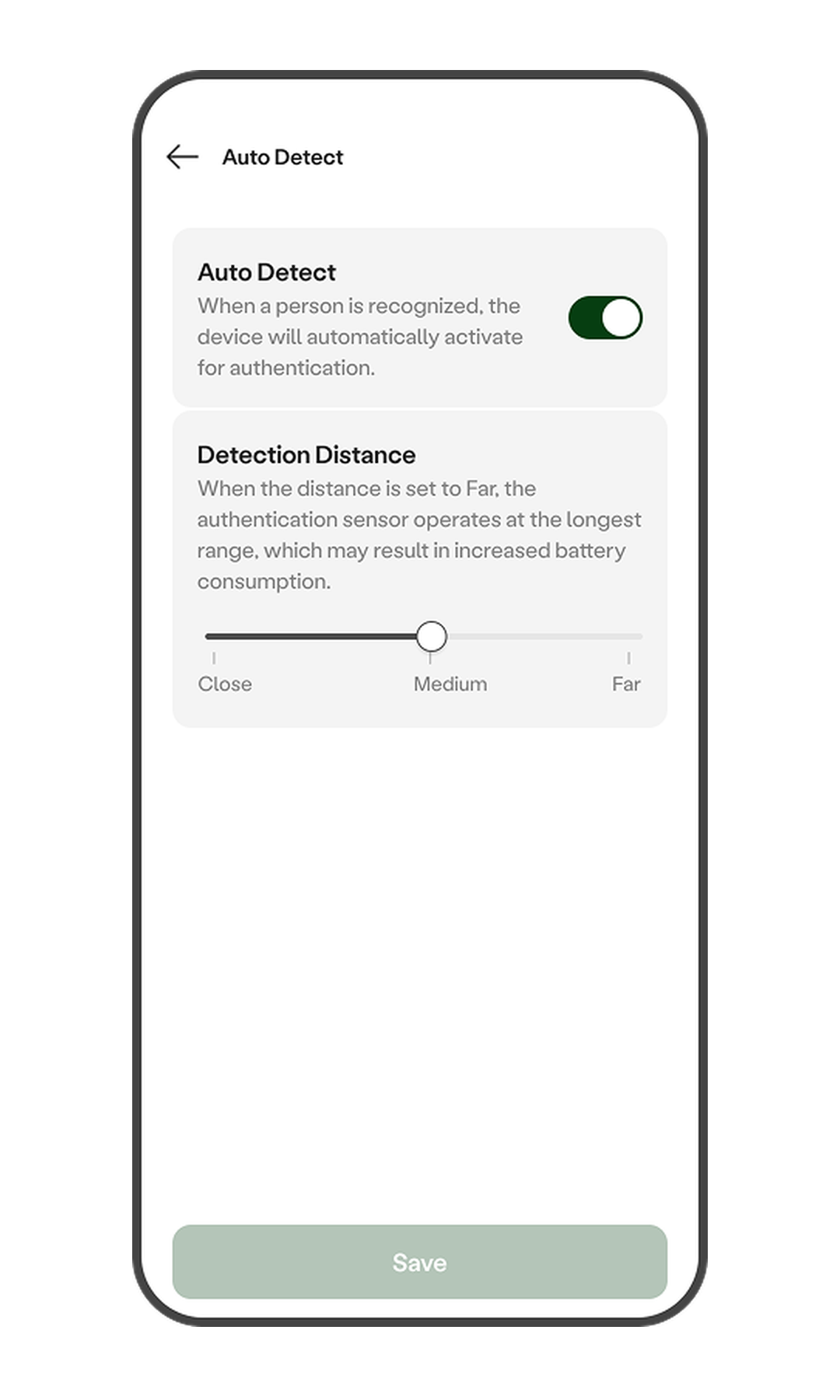

Auto Detection
When you approach the door, this feature automatically detects you, lights up the keypad, and activates the key tag and fingerprint sensors so the lock is ready for instant authentication. (Default: ON)
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Auto Detection].
- Turn the toggle on or off to enable/disable the feature. The default setting is ON.
- Under the Recognition Distance section, adjust the slider to your preferred range: Close, Medium, or Far. (Default: Medium)
Manage on the Device
- To Enable (Default): Register (Hold 5 sec) > > 1 + > 1 +
- To Disable: Register (Hold 5 sec) > > 1 + > 2 +
- Detection range setting : Register (Hold 5 sec) > > 1 + > 3 +
- Close : Register (Hold 5 sec) > > 1 + > 3 + > 1 +
- Medium : Register (Hold 5 sec) > > 1 + > 3 + > 2 +
- Far : Register (Hold 5 sec) > > 1 + > 3 + > 3 +
- Close : Register (Hold 5 sec) >

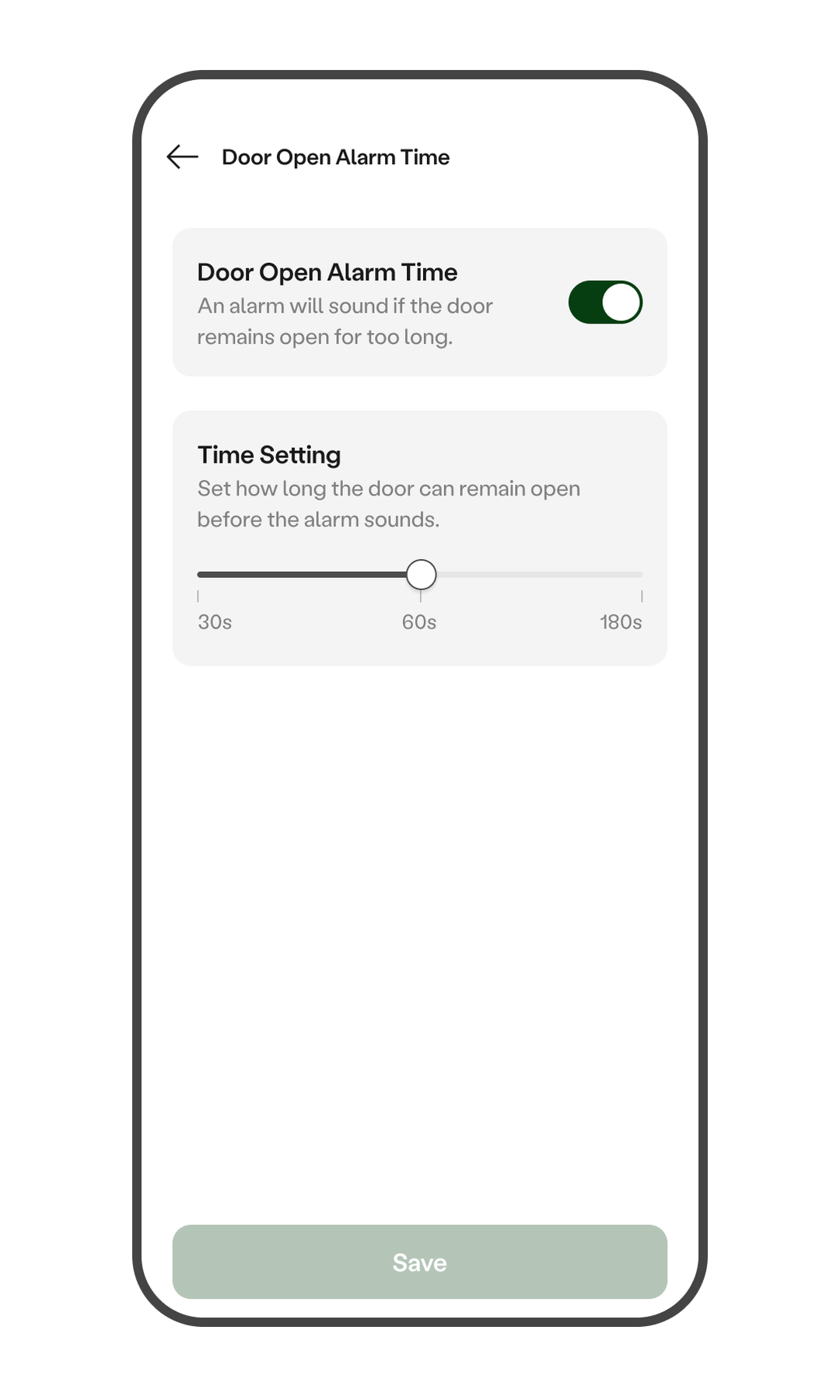

Door Open Alarm Duration
An alarm will sound if the door remains open without closing for the set time (default: 60 seconds). It detects cases such as when the door is not fully closed when leaving, or when you forget to close the door after ventilating, and alerts the user.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Door Open Alarm Time].
- Turn on the top toggle to enable the feature. The default setting is ON.
- Adjust the bottom slider to set the time before the alarm sounds. You can choose among 30 seconds, 60 seconds, or 180 seconds. The default setting is 60 seconds.
Manage on the Device
- To Enable (Default): Register (Hold 5 sec) > > 7 + > 1 +
- To Disable: Register (Hold 5 sec) > > 7 + > 2 +
- Alarm time setting
- 30 seconds: Register (Hold 5 sec) > > 7 + > 3 + > 1 +
- 60 seconds (Default): Register (Hold 5 sec) > > 7 + > 3 + > 2 +
- 180 seconds: Register (Hold 5 sec) > > 7 + > 3 + > 3 +
- 30 seconds: Register (Hold 5 sec) >

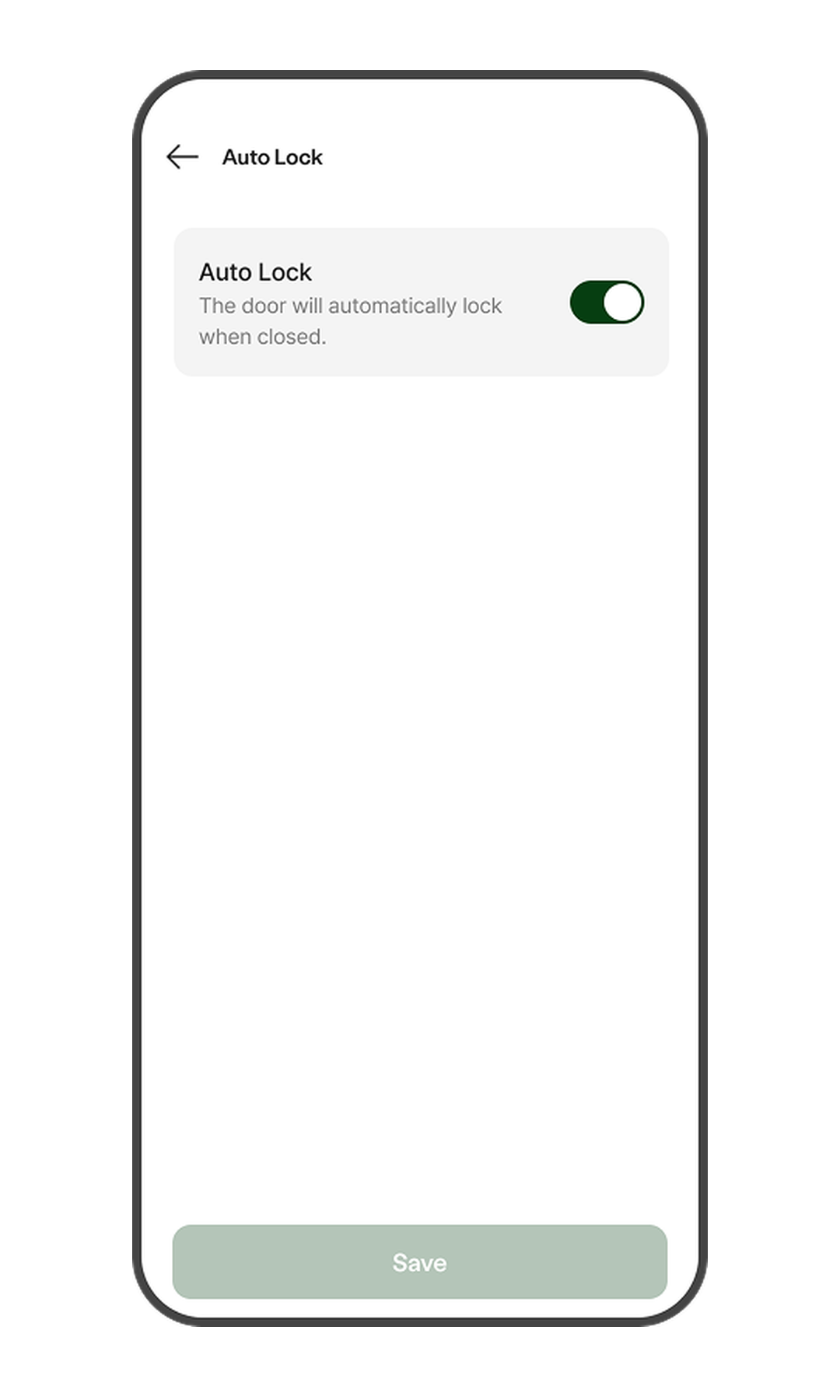

Auto-Lock
- When Auto-Lock is Enabled
- The door locks automatically immediately upon closing.
- When Auto-Lock is Disabled
- The door does not lock when closed.
- To lock the door from the inside, turn the [Manual Thumbturn] on the indoor handle to the locked position.
- To lock the door from the outside, press the button on the keypad.
- To open the door from the outside, touch the keypad and press the button.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Auto Lock].
- Turn the toggle on or off to enable/disable the feature. The default setting is ON.
Manage on the Device
- To Enable (Default): Register (Hold 5 sec) > > 5 + > 1 +
- To Disable: Register (Hold 5 sec) > > 5 + > 2 +

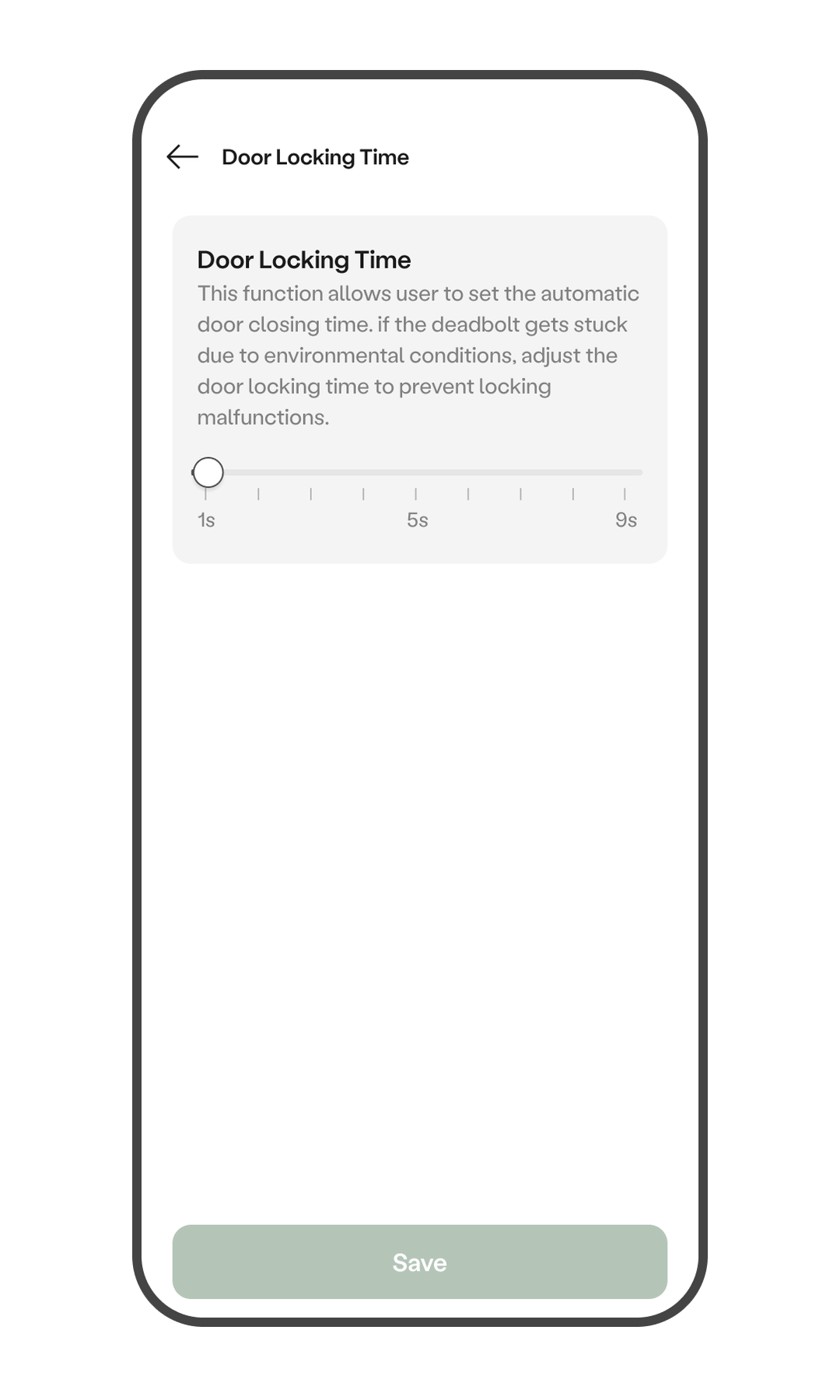

Door Locking Time
This feature allows you to set the time for the door to lock automatically. If a deadbolt jam occurs depending on the usage environment, adjusting the door locking time can help resolve the jamming issue.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Door Locking Time].
- Adjust the slider to set the time for the door to lock automatically. You can set it from 1 to 9 seconds in 1-second increments, and the default setting is 1 second.
Manage on the Device
- Door Locking Time (Default: 1 sec): Register (Hold 5 sec) > > 4 + > 1~9 +
Note: Select a number between 1 and 9 to set the delay time in seconds. (Default: 1 sec)

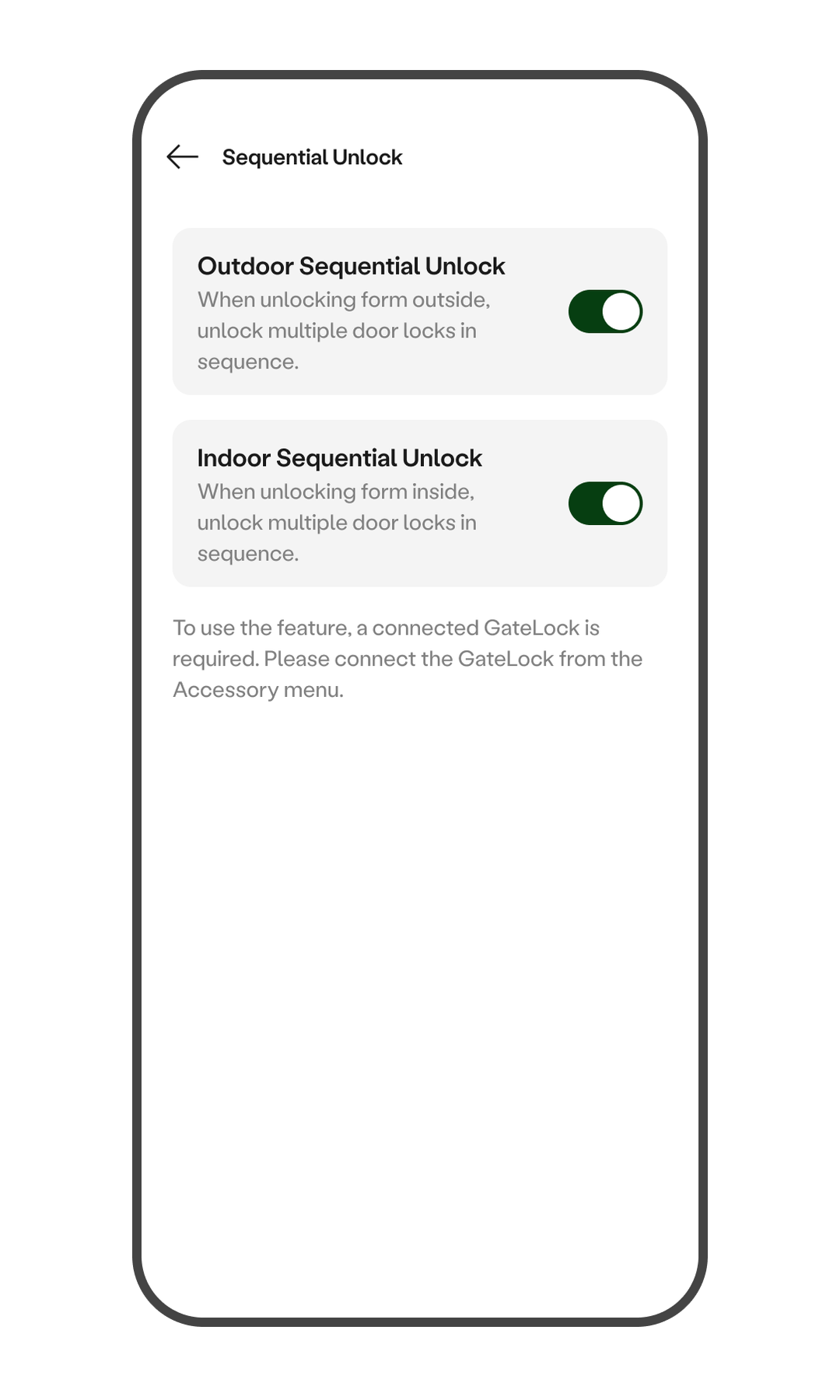

Sequential Unlock
Sequential Unlock is designed for homes where a gate lock and a main door lock are installed together. Opening one lock will automatically trigger the other to unlock in sequence. You can manage the settings for each unlocking direction individually.
Manage on the App
- Go to Door Lock > More (⋮) > Option Settings on the app Home screen.
- Tap [Sequential Unlock].
- Toggle the switches on or off to configure each setting as needed:
- Outdoor Sequential Unlock: Sequentially unlocks multiple door locks when unlocking from the outside. (Default: ON)
- Indoor Sequential Unlock: Sequentially unlocks multiple door locks when unlocking from the inside. (Default: ON)
Manage on the Device
- To Enable Indoor Sequential Unlock (Default): Register (Hold 5 sec) > > 9 + > 1 +
- To Disable Indoor Sequential Unlock: Register (Hold 5 sec) > > 9 + > 2 +
- To Enable Outdoor Sequential Unlock (Default): Register (Hold 5 sec) > > 9 + > 3 +
- To Disable Outdoor Sequential Unlock: Register (Hold 5 sec) > > 9 + > 4 +
Anti-Tamper Function (Cannot be configured)
This feature sounds a warning alarm and blocks the door lock from operating if it is incorrectly manipulated from the outside.
Regardless of the authentication method—such as passcode, fingerprint, or key tag (excluding mobile key)—if a total of 5 authentication errors accumulate, an error sound will play followed by a voice guidance announcing a 3-minute operation suspension, during which the door lock will stop operating. For example, failing 2 passcode attempts and 3 key tag attempts is considered a total of 5 errors, and operation will be suspended.
